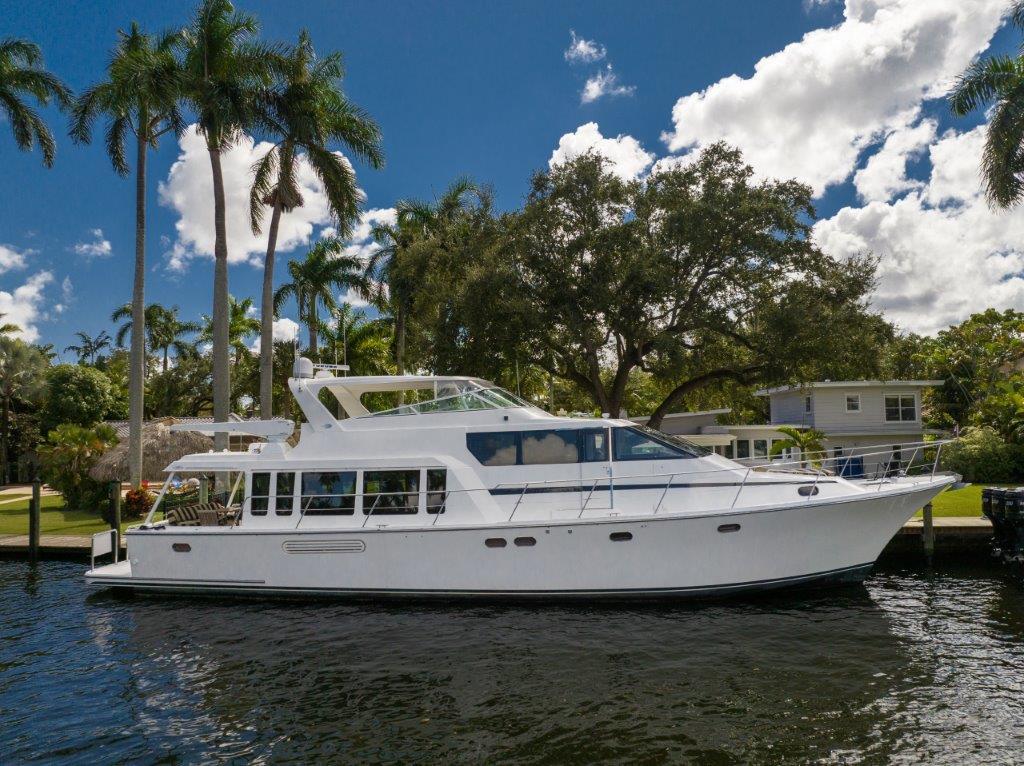

2005 Pacific Mariner Diamond20m

• Extra hose spigot in aft deck beside outside water connection
• Isinglass glass full enclosure for aft deck, still new in original storage bags
• Converted area under VIP stateroom (accessed by moving stairs) to huge storage area by completely flooring the area, and adding lighting as well as a wine refrigerator
• Added custom-built teak cabinet with stone top fabricated to match existing cabinetry. Cabinet is behind steps to bridge and houses dust buster and electrical connection as well as storage.
• Created large storage area behind crew quarters head by enlarging the opening to allow someone to crawl back there and lighted the area.
• Head pump and freshwater pump are connecting with cross over valves allowing either as back up to the other.
• Whole boat double filtering system for fresh water
• Mirrors behind door in master stateroom and inside medicine cabinet in master head Crew quarters shower curtain holder on ceiling and shower sump pump
• Installed galley hood venting directly outside from galley to remove cooking odors.
• Added extra on/off switch in anchor locker so it could be accessed close to anchor.
• New main AC chiller in 2021
• 2022 new raw water pump and circulation pump
• New blowers in 2020
• Installed pump cycle gauge with reset button for each bilge pump to see how many cycles it makes to check for leaks. Located in compartment just under pilot house.
• Added electrical outlets for fans on bridge and aft deck
• Two new Garmin 16” plotters model 8616 and transducer installed in 2021/2022
• Revere offshore six person life raft 2022
• McMurdo Smartfind G8 AIS Auto EPIRB with auto release 2022
• New house/main engine and generator batteries 2022
• Fire system inspected 2022
• Main Engine coolant circulating pumps 2022
• Bottom last painted July 2021
• Shower sump overhauled 2021
• Main engine Raycores over hauled 2022
• Marine Data Solutions internet service with booster antenna 2022
• 3 WIFI hot spots installed 2021
• Engine Room LED lights 2021
• Air condition system serviced Spring 2023
• Main engine service Spring 2023
• Generator heat exchangers Spring 2023
• Transmission and hydraulic coolers serviced Spring 2023
• Haul out and bottom paint May 2023
• MTU main engines 2000 complete 2000 hour service
• Spring 2023 generators service
• Hot water heater in stainless steel installed Spring 2023 has electric and engine coolant heating
• Anchor windless serviced as needed
• Bottom painted Spring 2023
• Fresh water and fresh water head pumps rebuilt
• Water maker serviced

• H&K Gelcoat - high gloss, UV resistant
• Solid fiberglass hull bottom
• Vacuum bagged Airex cored topsides
• Vinylester skin coat on hull and deck to reduce cosmetic shrinkage and provide osmotic barrier
• Interlux Interprotect epoxy barrier coat - light grey
• Interlux Micron CSC Extra bottom paint
• Foam cored fiberglass stringer
• Composite structural bulkheads
• One piece fully cored unitized deck house

• Twin electronically controlled 825 hp MTU diesel engines
• Dual Racor fuel filters for main engines
• Sea strainers for main engines
• Naiad Stabilizers -4.5 square foot fins
• Naiad Multisea II stabilizer controls - Pilothouse & Bridge
• Naiad 25hp hydraulic bow thruster
• Propeller shafts 2.5" 22 HS built to proprietary tolerances
• Dripless shaft seals with crossover plumbing
• Dripless seals for rudders
• Struts - heavy duty bronze with rubber cutlass bearings
• Power assisted hydraulic steering
• Cast bronze rudders with stainless steel posts
• Generator sea strainers
• Racor fuel filters for generators
• Oil change system for engines and generators
• Delta T engine room demisters with 24v fans
• Automatic/manual fire extinguisher system

• High density foam cored engine beds
• Underwater engine exhaust with vectored cowls
• 2" double density sound foam with barrier in engine room
• Insulation on engine mufflers and piping
• Sound barrier tiles in strategic locations
• 3M Thinsulate for acoustic thermal insulation
• Improved generator sound shields
• Generators installed on secondary isolation mounts
• Separating mufflers on generators with underwater discharge
• Air conditioning water discharged underwater
• Silencers on air conditioning ducts
• All pumps and motors installed on secondary isolation mounts
• Isolation bulkhead between master and guest stateroom
• Sound absorbing pads under carpet

• Northern Lights 20 kW generator - 1740 hrs
• Norther Lights 16 kW generator - 1807 hrs
• 3000 Watt Prosine Inverter
• Glendinning Cablemaster 2 each 50 Amp with 100' cord and handheld remote control
• 30 Amp inlet with 50' cable
• Isolation transformers 50 Amp and 30 Amp
• AC Distribution panel with: split buss system for flexible source choices, magnetic breakers, backlit labels, digital AC frequency, amp and voltmeters
• All receptacles, GFCI protected
• 24 VDC distribution panel with: magnetic breakers, backlit labels, digital amp and voltmeters
• 12 VDC system with: DC-DC converter, 12 VDC distribution panel, backlit labels, digital amp and voltmeters
• Battery charters, 12 and 24 VDC
• Heavy duty battery switches
• Battery paralleling switch
• 8D gel cell batteries for engine start and house system
• GRP 27 gel cell batteries for generators
• Bonding system
• 24 VDC lighting
• 24 VDC LED engine room lighting
• 24 VDC navigation lights
• Navigation light indicator panel
• Bilge pump warning panel
• Bilge pumps - 9 with automatic/manual operation
• Telephone and CATV inlet with 50' cable
• Wiring, tinned copper with labels installed to ABYC standards

• Air Conditioning/Heat: Aqua Air 60,000 Btu chilled water air conditioning system with reverse cycle heat, quiet rotary compressor, soft start inverter system, zoned system with electronic thermostats, underwater discharge water outlet,
  inline silencers on ducts, condensate discharge system
• Water System: water pump 24 VDC 60 PSI, 285 gallon 316L stainless steel water tank, on demand hot water system, color coded piping system, city water connection with pressure reducing valve, shut off
  valves at each fixture, hot and cold outlet in engine room, fresh water wash down on foredeck and aft deck, shower on aft deck, water heater, 30 gallons with engine coolant heat exchanger
• Water maker: Sea Recovery 800 GPD, fresh water flush, UV filter, oil/water separator, commercial prefilter, plankton filter
• Head System: Headhunter jet type heads, 125 USG FRP holding tank, head pump 24 VDC 60 PSI, 10 gallon accumulator tank, holding tank pump 24 VDC, deck pump-out with valve (separate systems for crew head)
• Central vacuum with power brush and tools

• MTU engine instruments
• MTU electronic controls
• MTU backup controls
• Premium electronics package: flat screen (3) radar/plotter/sounder with Furuno Black Box Navnet, Furuno 1942 6kW, 64 nm radar, Furuno 582L color depth sounder, Chart Plotter Garmin 16", ICOM M602 VHF radio, Furuno GP37 GPS with WAAS and Differential, Simrad AP20 autopilot, Autopilot remote, Simrad digital depth/speed/wind displays, KVH Gyrotrac Compass, Naiad Multisea II Stabilizer controls, Naiad Bow thruster control, Garmins and Garmin transducer
• ACR spotlight
• Holding tank level indicator
• 12V power outlet
• Power assisted hydraulic steering
• Wood rimmed stainless steering wheel
• Stidd helm and companion chairs
• Sliding doors port and starboard
• Retractable bug screens on doors
• Two chart drawers
• Two Large storage drawer
• Dimmer for overhead lights
• Stereo speakers connected to main system with volume control
• Heavy duty windshield wiper/washers with intermittent operation
• Windshield defog system
• Wood handrail on curved staircase

• Fully equipped gourmet galley: Dacor stainless range with convection oven, KitchenAid stainless refrigerator 22 cu. ft. side by side with ice and water, KitchenAid stainless dishwasher, GE stainless microwave oven, KitchenAid stainless trash compactor, Stainless steel double sink, Insinkerator disposal, Grohe single lever faucet with pull out sprayer
• Teak and holly flooring
• Custom buffet for dish storage
• Lazy Susan with pull out shelves
• Granite countertop
• Overhead ventilation hatch with build in roll-up screen
• Digital room temperature control

• Custom upholstered settee - leather
• Custom camphor dining table with leaf and high gloss finish and extension leaf
• Large storage under settee
• Electric room heater
• Central vacuum outlet

• Custom furniture sofa
• Large drawers under sofa
• Custom table adjusts electrically from coffee to dinner height. Camphor veneer with high gloss finish
• Custom chairs and wood table with drawer
• Stainless steel framed sliding door to aft deck with retractable bug screen
• Smart TV
• Wet bar: refrigerator, icemaker, stainless steel sink, custom crystal cabinet, bottle storage drawer
• Digital room temperature control
• AC distribution panel
• Generator control panels
• Inverter control panel

• King size walk around bed with custom headboard
• King size inner spring mattress
• 20" Flatscreen TV with DVD
• Simrad digital depth sounder
• Telephone outlet (2)
• Two cedar lined, lighted hanging lockers with full length mirror on doors
• Built in drawers under berth
• Desk with bookshelves, storage drawers and chair
• Upholstered lounge with drawer storage
• Hidden air conditioning duct with muffler
• Dimmer for overhead lighting
• Electric room heater
• Dresser with 7 large drawers on one side of the stateroom
• Desk with 6 drawers and a chair on other side of the stateroom
• Hidden air conditioning duct with muffler
• Swingarm reading lights
• Four stainless portlights with screens
• Central vacuum outlet

• Marble countertop with sink
• Grohe single lever faucet
• On demand hot water
• Jet type marine toilet
• Marble flooring
• Towel storage cabinet
• 5' bathtub with shower
• Pressure balanced shower valve
• Tempered glass shower door
• Mirrored vanity with storage
• Powered ventilation
• Air conditioning outlet
• Stainless portlight with screen

• Queen
• Built in drawers under berth
• Flatscreen TV and VCR/DVD
• Stereo with CD player
• Cedar lined, lighted hanging locker
• Swingarm reading lights
• Digital room temperature control
• Electric room heater
• Ventilation hatch with screen and privacy cover
• Two stainless portlights with screens

• Marble countertop with sink
• Grohe single lever faucet
• On demand hot water
• Jet type marine toilet
• Sunken shower with safety glass door
• Pressure balanced shower valve
• Mirrored vanity with sink
• Power ventilation
• Air conditioning outlet
• Stainless portlight with screen
• Marble flooring
• AC outlet

• Twin berths
• Flatscreen TV and VCR/DVD
• Stereo with CD player
• Cedar lined, lighted hanging locker
• Built in drawers under berths
• Reading lights
• Digital room temperature control
• Stainless portlight with screen

• Entry from hall or guest stateroom
• Marble countertop with sink
• On demand hot water
• Grohe single lever faucet
• Jet type marine toilet
• Shower with safety glass door
• Pressure balanced shower valve
• Mirrored vanity with storage
• Air conditioning outlet
• Powered ventilation
• Stainless portlight with screen
• Marble flooring
• AC outlet

• Stacked washer/dryer
• Storage cabinets
• Fluorescent lighting
• Stainless coat hooks (used for lines, etc.)

• Two extra long berths
• Storage under berth
• Reading lights
• Digital room temperature control
• Electric room heater
• Sink with faucet
• Marine head with holding tank
• Holding tank level indicator
• 6 cubic foot freezer with storage hood
• Storage cabinet for ships spares
• Access to engine room
• Stainless portlight with screen

• 3,000 lb. Windlass
• Nautical Structures Euro 1500 deck crane
• 300' high test chain
• 75lb CQR anchor
• Stainless steel anchor mount
• Fender locker on foredeck
• Fresh and sea water wash downs on foredeck
• Sunbrella Sunpad cushion with handrails
• Kahlenburg horn
• Windshield system tempered safety glass frameless flush design
• 316 stainless steel bow rail
• Port and starboard gates
• Stainless steel bow, spring and stern cleats with rub strakes
• Stainless chocks on aft cleats
• Full walk around side decks
• Fuel fills port and starboard
• Water fills port and starboard
• Holding tank pumpout fitting
• 316 stainless steel handrails

• Sunbrella upholstered settee
• Hi Gloss Teak table and teak chairs
• Stainless steel glass door to salon
• Access to laundry, crew quarters and engine room
• Full canvas enclosure with Strataglass panels
• Stainless steel handrail with gate
• Fender locker
• Ladder to flybridge
• Docking windlasses
• Port and Starboard electric shore power cords port and starboard
• LCD courtesy lighting
• Xenon overhead lighting
• Fresh water washdown - added by owners
• Dockside water inlet with pressure valve

• 5' boarding platform
• Large storage locker with 2 access hatches
• Stainless steel swim ladder
• 3 popup stainless steel cleats
• Removable stainless steel handrail
• Hot and cold shower
• New swim ladder - May 2023

• Fully equipped control station
• MTU engine instruments
• MTU electronic controls
• Premium electronics package: Garmin 16” plotter, Simrad autopilot remote, ICOM M402 VHF radio, rudder angle indicator, bow thruster control, Multisea II stabilizer control, spotlight control, Simrad depth and speed displays
• Windshield wiper and washer
• Speakers connected to main systems with volume control
• Electric BBQ grill
• Refrigerator
• Stidd helm and companion seats
• Stainless steel steering wheel
• Hydraulic steering, power assisted
• Custom curved windshield with tempered safety glass
• 1500 lb Nautical Structures hydraulic davit with power booming and rotation
• Upholstered lounge
• Fast dry foam in all exterior cushions
• Storage under
• Corian table
• Handrails, stainless steel
• Tungsten halogen floodlights
• Courtesy lighting
• Hatch to ladder to aft deck

Exclusions are to include but are not limited to, owner's personal belongings. A detailed list of exclusions to be provided at time of contract.

**EIAPP Certificates do not convey with the sale of this vessel.**
