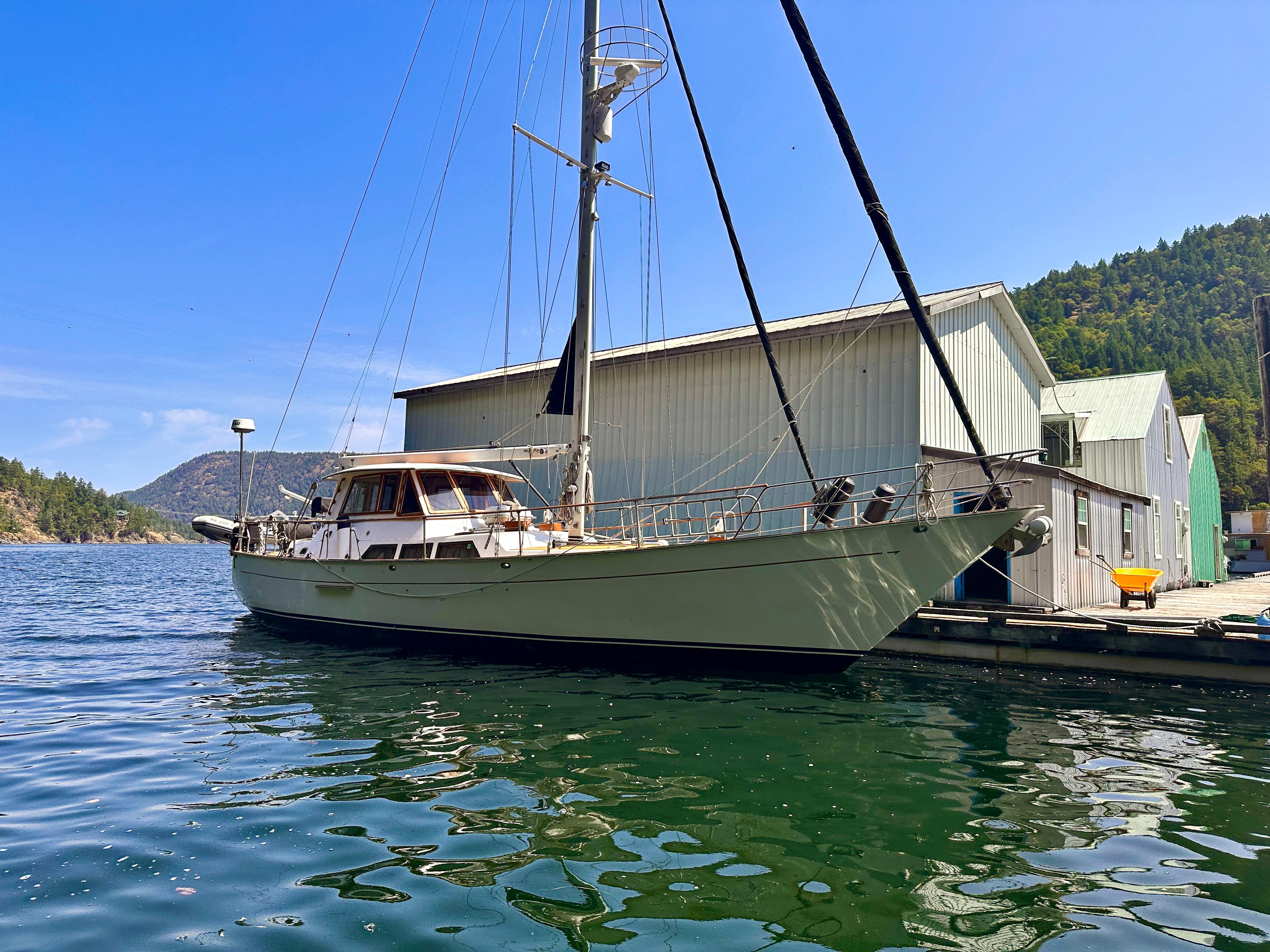

1990 Antigua Pilothouse18m

Details

LOA: 58'0"
Beam: 15’2"
Draft: 6’4”
Sling weight is 45,000 lbs
Bridge Clearance 72'0"

Tankage

Fuel Tanks: Two 150-gallon stainless steel tanks for the Perkins engines.
Generator and Furnace Fuel Tanks: One 120-gallon stainless steel tank.
Water Tanks: Two aluminum tanks with a total capacity of 180 gallons.
Holding Tanks: Two 35 gallon black water holding tanks (each stateroom) monitored by Tank Tender system

Engines

Twin Perkins M80T Turbo Diesels
Model: M80T Turbo
HP: 80hp
Fuel: Diesel
Hours: STBD 1216 PORT 1247 - STBD rebuilt at 512
Cruising speed: 7.5knts @ 3,200rpm

Electronics

SIMRAD NSS EVO2 series 9” plotter
Navionics Gold Card chart pack.
Airmax in-hull sonar
Simrad Broadband 4G Radar
Simrad GPS - Navstation
Simrad Wi-fi
AP44 Simrad Autopilot.
Bowthruster: Westmar 4-blade
Battery System is as follows:
Two size 27 starting (new 7/2015)
Three 8D for instruments (new 7/2015)
Six 8D for house (new 7/2015)
One 8D for windlass and bow thruster (new 7/2016)
Battery Chargers: 2x 50 amp & 35 amp
Xantrex Link 20 battery monitors
4 VHF Radios
2 TVs with Blue Ray
Windlass: Maxwell 3500
Chain Counter
Inverter: Vanner 3500 Watt Model 20-3600C
50amp shorepower with 30amp pigtail if needed
Electric cablemaster
EPIRB
Electric Winches:
Two Barient #32 electric two-speed self-tailing outboard for genoa
Two Barient #27 electric two-speed self-tailing in pilot house for main and staysail
Barient #21 on mast
Lewmar #8 on boom

Equipment

Generator - Northern Lights 9KW three cylinder diesel, model SAW18G. Wired for 240V. Engine Hours: 236
Water maker - 200gpd Galley Maid Model MM-300/240/60. Never used.
Heating - Webasto 45,000 btu hydronic diesel furnace with thermostat and in-line filter. Outlets with two-speed fans in aft stateroom, salon (2), forward stateroom and pilothouse.
Westmar 4-blade Bow Thruster
All lines lead to Pilothouse with electric winches
Refrigerators (2): Waeco, Coolmatic
Freezer: Waeco 12/120V Coolmatic frost-free
Washer/Dryer Combo: Splendid 2000 model WD 802 M
Propane Barbecue mounted aft deck
Nautical Structures davit and electric winch.
10-foot Zodiac Zoom RIB with a 9.8 hp 4-stroke Tohatsu outboard
600 feet 7/8 inch polypropylene line on stern rail for stern ties
Maxwell 3500 electric anchor winch
Anchor and chain saltwater wash down
Hydrobubble primary anchor
Attached to Primary Anchor: 400 feet 3/8 BB chain attached to 330 feet 7/8 nylon rode.
Back-up 50 kg Bruce anchor with chain and rode.
Attached to Back-up: 60 feet BB chain and 250 feet ¾ nylon rode.

Safety Equipment

Satellite EPIRB with integral GPS
Jim Buoy and LifeSling, Fire extinguishers, smoke and CO alarms.
Givens 8-man liferaft
Viking PS2004 cold water immersion suits
USCG required signaling devices
PFDs (inflatable w/D rings)

Rigging

Standing rigging 5/16 SS on double spreaders, new in 4/2007
Main Spar: Hood Stowaway System with mast steps Spar, Section Size: HS-1267; Boom Section Size: HB 5553. Type: Electric; Voltage 12V; luff rod Splice: HS 7742-HS 1157A luff rod; HS 1267 & above DD luff rod; Gooseneck: Manual & Electric Drive. Electric drive re-built 2/2021
Genoa: 120 on Harken Mark IV Furler, new in 2/2007
Staysail: on Harken Mark IV Furler, new in 2/2007
Running backstays
Hydraulic Boom vang

Accommodations

Aft center positioned master stateroom with queen bed, ensuite head with tub/shower, sink and electric head (fresh or salt water).
Guest stateroom forward with double bed, ensuite head with shower, sink and electric head (fresh or salt water)

Interior

Open concept Pilothouse with seating for 6
U-shaped salon with bench seating opposite
Walk-in engine room with shop
Nav station below decks
Galley with 10 feet of counter space
Double sink, microwave, 3-burner electric stove with oven, two refrigerators, frost free freezer
Water Filtration system



The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
